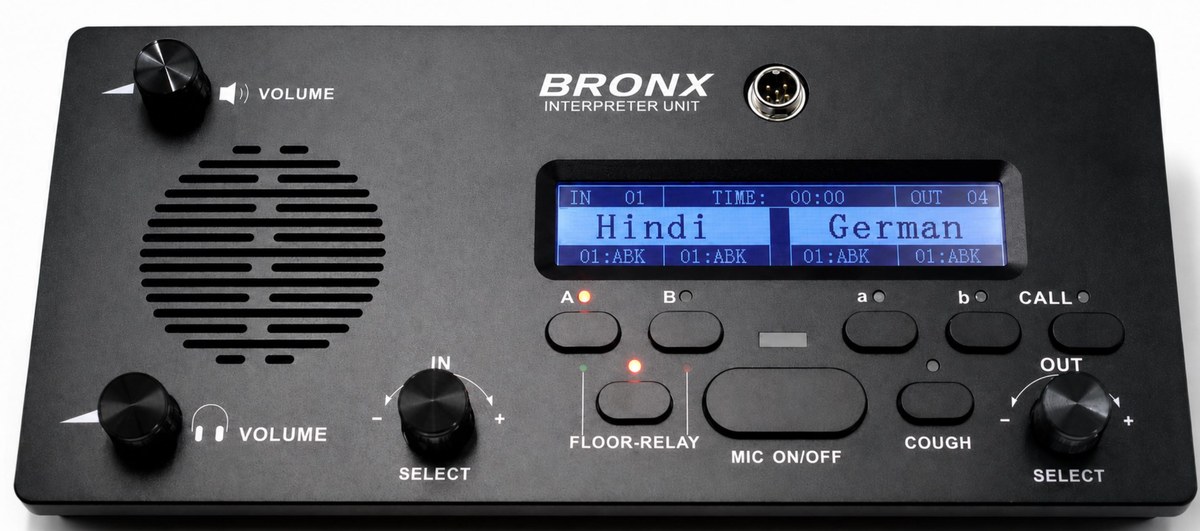

A full-digital networked DSP interpreter station with direct and relay translation across 63 + 1 language channels, for booth use in conferences, parliaments and broadcast halls.
Specifications as per the official Bronx datasheet (2026, Rev. A). Specifications may change without prior notice.
Any interpreter unit can be assigned as the operator station, with an internal voice link between the operator and the rest of the booth. Two interpreters can share one desk, and two booth-level operating modes (Interlock and Override) keep channels unique. A metal chassis shields against mobile-phone RF interference.
| Power | DC 48 V from main unit or adaptor |
| Power consumption | 3 W |
| Transducer | Electret-condenser |
| Polar pattern | Uni-directional |
| Sensitivity | −46 dBV / Pa |
| Frequency response | 20 Hz ~ 20 kHz |
| Input impedance | 2.2 kΩ |
| Frequency response | 30 ~ 20 kHz |
| Earphone load | > 8 Ω |
| Earphone volume | 10 mW |
| Directivity 0° / 180° | > 20 dB (1 kHz) |
| Equivalent noise | 20 dBA (SPL) |
| Maximum sound pressure | 125 dB (THD < 3 %) |
| Display | 320 × 64 dot (blue / white) |
| Connector | 2 × Ø 3.5 mm earphone jack; 2 × Ø 3.5 mm microphone jack; 2 × RJ45; 1 × 2.5 mm adapter port; connector for pluggable gooseneck microphone |
| Dimensions (h × w × d) | 280 × 128 × 55 mm |
| Weight | 1.5 kg |
| BR-DCU-SAFM-INTSEL | Flush-mount 64-channel selector for delegate seats |
| BR-DCU-SAFM-C / -D | Chairman & delegate discussion units on BRONX-LINK |
| Microphones | Headset / gooseneck mics — pluggable, hot-swap, 4 lengths available |
| Main unit | Bronx central control unit — required for the DC 48 V supply |
Including the floor channel.
High-speed, fully digital signal path; 48 kHz sampling, 30 Hz – 20 kHz response on every channel.
Hearing-protection limiter on both paths.
Hot-swap on the live network; headset or gooseneck.
Only one microphone live on a language channel at a time.
Interlock and Override.
Languages and system settings — no PC required.
Momentary mute and instant floor / relay switching.
Elapsed interpretation time on the display.
Send us your room dimensions — we'll recommend a configuration.
