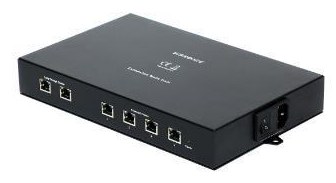

A fanless power extender that supplies additional power to the discussion chain, so the Bronx conference processor can support more discussion units over a loop-plus-star wired architecture.
Specifications as per the official Bronx datasheet (2026, Rev. A). Specifications may change without prior notice.
When the discussion chain does not have enough power, the BR-EXM injects additional power so more CU / DU units can be added. Its loop-wired architecture keeps star-wired reliability, with redundant loop cabling and up to 100 m between extenders.
| Architecture | Loop-wired, with star-wired benefits |
| CU / DU channels | 4 |
| Ports | Upstream and downstream ports |
| Span | Up to 100 m between BR-EXM extension main units |
| Expansion | Expands four chains |
| Cooling | No fan, noiseless power supply |
| Power | 3 A, 48 V DC |
| DC connector | Self-locking |
| Loop / microphone ports | 4 × RJ45, with redundant loop cabling for network stability |
| Loop-through | 2 × RJ45 loop-through daisy chains — loop several network extenders |
| Dimensions | 223 (W) × 37 (H) × 92 (D) mm |
| Weight | 0.5 kg |
Star-wired reliability with redundant loop cabling.
Provides four channels and expands four chains.
Daisy-chain several extenders.
No-fan power enhancement for quiet rooms.
Long runs between BR-EXM extension main units.
Small body for under-table or rack-side mounting.
Send us your room dimensions — we'll recommend a configuration.
