Switcher 4 In 1 Out
Description
- VGA (RGB) 4 In 1 Out Switching System: Input: 4 PC Video (RGB): 0.7Vpp/75Ω, on VGA (HD-15) connectors, Sync/Video Gunlock, 4 balanced stereo audio on VGA cable only, +4dBu/33kΩ, on detachable terminal blocks. Output: 1 PC Video (RGB): 0.7Vpp/75Ω, on VGA (HD-15 connectors;4 balanced stereo audio, +4dBu/150Ω, on detachable terminal blocks, , fully loaded (video). S/N RATIO:Video: 74dB; Audio: 84dB unweighted, (1Vpp). Controls: Front panel & IR Serial, Audio THD: 0.025% (1V, 1kHx). with wireless IR Remote for easy configuration on control processor.
- Description - 4 PCs TO 1 monitor, I
- input - HD-15M x 4,
- Output - HD-15M x 1, Max.
- Resolution - 1920 x1440,
- Video Bandwidth - 250MHz,
- BANDWIDTH (-3dB): 300MHx
- Case Design - Metal case,
- Power: 230V AC, 50/60 Hx, 25VA,
- Dimension) - 183(L) x 110(W) x 40(H)

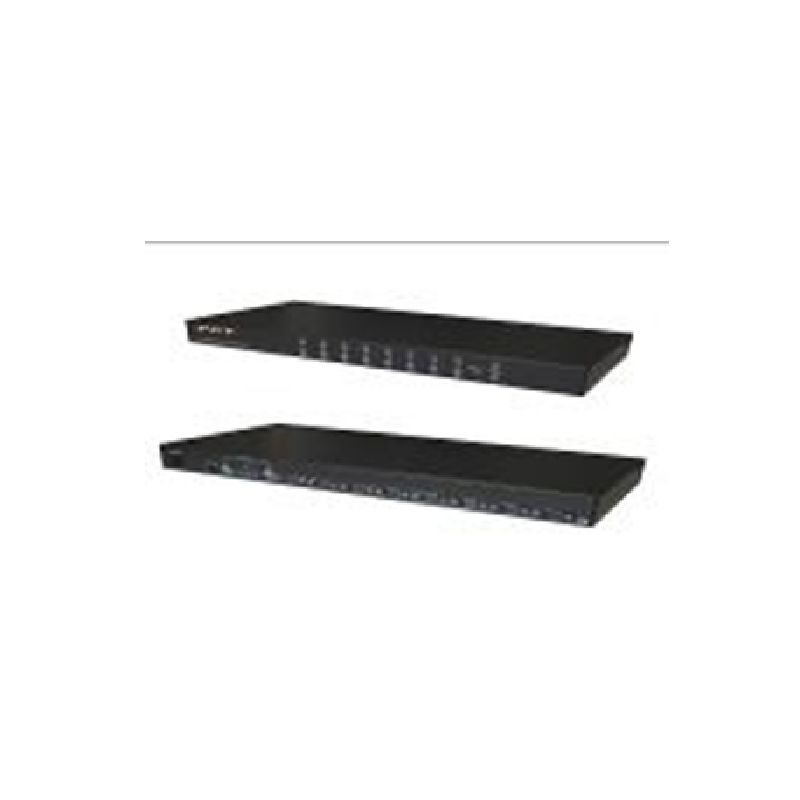

Switcher 8 In 1 Out
Description
- VGA (RGB) 8 In 1 Out Switching System: Input: 4 PC Video (RGB): 0.7Vpp/75Ω, on VGA (HD-15) connectors, Sync/VideoGunlock, 4 balanced stereo audio on VGA cable only, +4dBu/33kΩ, on detachable terminal blocks. Output: 1 PC Video (RGB): 0.7Vpp/75Ω, on VGA (HD-15)connectors; 4 balanced stereo audio, +4dBu/150Ω, on detachable terminal blocks,BANDWIDTH (-3dB): 300MHx, fully loaded (video). S/N RATIO: Video: 74dB; Audio:84dB unweighted, (1Vpp). Control Front panel & IR Serial, Audio THD: 0.025% (1V, 1kHx). Power: 230V AC, 50/60 Hz, 25VA, with wireless IR Remote for easy configuration on control processor.
- Support High Resolution Monitor/Projector
- Front push buttons video select and LED indication
- Description - 8 PCs TO 1 monitor
- Input - HD-15M x 8
- Output - HD-15M x 1, Max.
- Resolution - 1920 x1440,
- Video Bandwidth - 250MHz
- Case Design - Metal case
