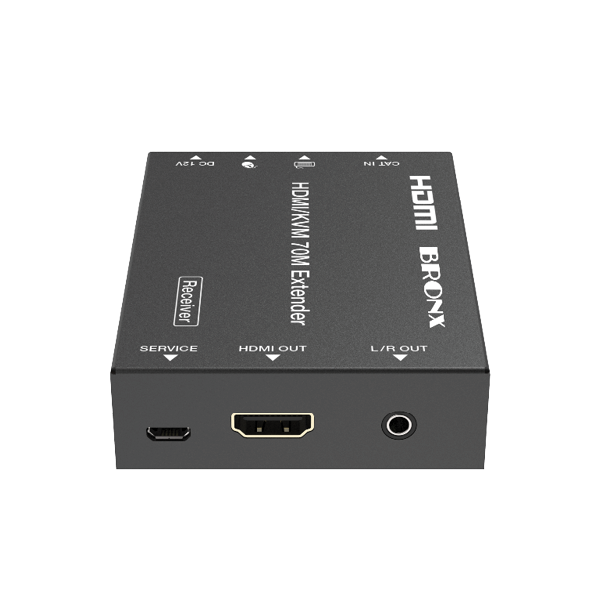

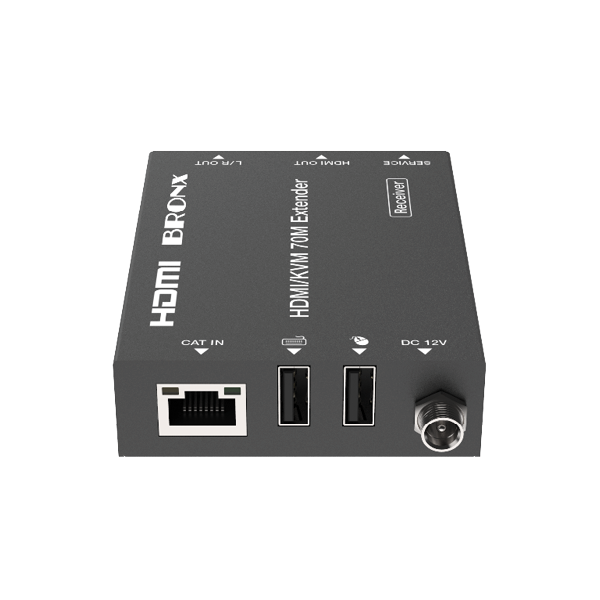

    18Gbps HDMI Extender (70m) with KVM

    BX-HDTX70-KVM, BX-HDRX70-KVM

    This 18Gbps HDMI Extender can extend HDMI HD signal to a distance up to 230ft / 70m via a single CAT6/6a cable, which can achieve zero-delay, uncompressed long-distance transmission between the transmitter and receiver. Video resolution is up to 4K2K@60Hz. The Extender supports KVM signal pass-through, which can remote control source device at display device. It supports EDID copy pass-through function between the source device and display device. It supports POC function.
    This Extender can be widely used in multi-media conference halls, TV teaching and large-screen displays.

    Features

    • HDMI2.0b and HDCP 2.2 compliant
    • Support 18Gbps video bandwidth
    • Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
    • The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
    • Support HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+)
    • Support 3.5mm analog audio de-embedding, audio is output through the L/R OUT port of the receiver
    • EDID copy pass-through function between the source device and display device
    • Support bi-directional POC (Power over Cable) function
    • With USB KVM pass-through function, USB1.1 compliant, support remote-control by keyboard and mouse
    • Compact design for easy and flexible installation
